Cisco Switch Port mirroring

포트 미러링

위키백과, 우리 모두의 백과사전.

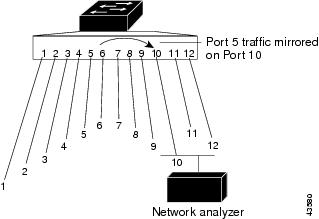

포트 미러링(Port Mirroring)은 네트워크 스위치의 어떤 한 포트에서 보이는 모든 네트워크 패킷 혹은 전체 VLAN의 모든 패킷들을 다른 모니터링 포트로 복제하는데 사용된다. 포트 미러링은 주로 침입 탐지 시스템이나 패시브 프로브 또는 애플리케이션 성능 관리(Application Performance Management, APM)에 필요한 실사용자 모니터링(Real User Monitoring, RUM) 기술과 같이 네트워크 트래픽을 모니터링 해야하는 네트워크 장비들에서 사용된다. 포트미러링은 시스코 스위치에선 일반적으로 스위치 포트 분석기(Switched Port ANalyzer, SPAN) 혹은 원격 스위치 포트 분석기(Remote Switched Port ANalyzer, RSPAN)라 불린다. 다른 제조사들에서는 다른 이름으로 부르곤 하는데, 3Com의 경우 로빙 분석 포트(Roving Analysis Port, RAP)라 부른다.

네트워크 엔지니어/관리자는 포트 미러링을 네트워크상의 데이터를 분석 및 디버그하거나 오류를 진단하는데 사용한다. 포트 미러링은 또한 관리자가 네트워크 성능을 관찰하는데 도움을 주고, 문제가 발생했을 때 이를 알려준다. 또한 인바운드나 아웃바운드 트래픽 중 하나 혹은 전부를 하나 또는 여러개의 인터페이스로 미러링하는데 사용할 수 있다.





1. CISCO 포트 미러링(SPAN) 명령어





- 포트 gi0/5번 in, out 패킷을  gi0/10번으로 미러링



Switch#config terminal
Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#monitor session 1 source interface GigabitEthernet 0/5
Switch(config)#monitor session 1 destination interface GigabitEthernet 0/10



- 포트 gi0/5번 in 패킷을  gi0/10번으로 미러링



Switch#config terminal
Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#monitor session 1 source interface GigabitEthernet 0/5 rx
Switch(config)#monitor session 1 destination interface GigabitEthernet 0/10



- 포트 gi0/5번 out 패킷을  gi0/10번으로 미러링



Switch#config terminal
Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#monitor session 1 source interface GigabitEthernet 0/5 tx
Switch(config)#monitor session 1 destination interface GigabitEthernet 0/10







[출처] 시스코스위칭에서의 포트미러링 방법|작성자 보물섬

참고자료 : CISCO 가이드----------------------------------



Creating a Local SPAN Session

Follow these steps to create a SPAN session and specify the source (monitored) ports or VLANs and the destination (monitoring) ports.

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    no monitor session {session_number | all | local | remote}

4.    monitor session session_number source {interface interface-id | vlan vlan-id} [, | -] [both | rx | tx]

5.    monitor session session_number destination {interface interface-id [, | -] [encapsulation replicate]}

6.    end

7.    show running-config

8.    copy running-config startup-config

DETAILED STEPS

 Command or ActionPurpose

Step 1	enable  Example:	Enables privileged EXEC mode. Enter your password if prompted.
Step 2	configure terminal  Example:	Enters the global configuration mode.
Step 3	no monitor session {session_number | all | local | remote}  Example:	Removes any existing SPAN configuration for the session.   For session_number, the range is 1 to 66.   all—Removes all SPAN sessions.   local—Removes all local sessions.   remote—Removes all remote SPAN sessions.
Step 4	monitor session session_number source {interface interface-id | vlan vlan-id} [, | -] [both | rx | tx]  Example:	Specifies the SPAN session and the source port (monitored port).   For session_number, the range is 1 to 66.   For interface-id, specify the source port to monitor. Valid interfaces include physical interfaces and port-channel logical interfaces (port-channel port-channel-number). Valid port-channel numbers are 1 to 48.   For vlan-id, specify the source VLAN to monitor. The range is 1 to 4094 (excluding the RSPAN VLAN).   (Optional) [, | -] Specifies a series or range of interfaces. Enter a space before and after the comma; enter a space before and after the hyphen.   (Optional) both | rx | tx—Specifies the direction of traffic to monitor. If you do not specify a traffic direction, the source interface sends both sent and received traffic.   both—Monitors both received and sent traffic.   rx—Monitors received traffic.   tx—Monitors sent traffic.
Step 5	monitor session session_number destination {interface interface-id [, | -] [encapsulation replicate]}  Example:	Specifies the SPAN session and the destination port (monitoring port).   For session_number, specify the session number entered in step 4.   For interface-id, specify the destination port. The destination interface must be a physical port; it cannot be an EtherChannel, and it cannot be a VLAN.   (Optional) [, | -] Specifies a series or range of interfaces. Enter a space before and after the comma; enter a space before and after the hyphen. (Optional) encapsulation replicate specifies that the destination interface replicates the source interface encapsulation method. If not selected, the default is to send packets in native form (untagged).
Step 6	end  Example:	Returns to privileged EXEC mode.
Step 7	show running-config  Example:	Verifies your entries.
Step 8	copy running-config startup-config  Example:	(Optional) Saves your entries in the configuration file.



Creating a Local SPAN Session and Configuring Incoming Traffic

Follow these steps to create a SPAN session, to specify the source ports or VLANs and the destination ports, and to enable incoming traffic on the destination port for a network security device (such as a Cisco IDS Sensor Appliance).

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    no monitor session {session_number | all | local | remote}

4.    monitor session session_number source {interface interface-id | vlan vlan-id} [, | -] [both | rx | tx]

5.    monitor session session_number destination {interface interface-id [, | -] [encapsulation replicate] [ingress {dot1q vlan vlan-id | untagged vlan vlan-id | vlan vlan-id}]}

6.    end

7.    show running-config

8.    copy running-config startup-config

DETAILED STEPS

 Command or ActionPurpose

Step 1	enable  Example:	Enables privileged EXEC mode. Enter your password if prompted.
Step 2	configure terminal  Example:	Enters the global configuration mode.
Step 3	no monitor session {session_number | all | local | remote}  Example:	Removes any existing SPAN configuration for the session.   Forsession_number, the range is 1 to 66.   all—Removes all SPAN sessions.   local—Removes all local sessions.   remote—Removes all remote SPAN sessions.
Step 4	monitor session session_number source {interface interface-id | vlan vlan-id} [, | -] [both | rx | tx]  Example:	Specifies the SPAN session and the source port (monitored port).
Step 5	monitor session session_number destination {interface interface-id [, | -] [encapsulation replicate] [ingress {dot1q vlan vlan-id | untagged vlan vlan-id | vlan vlan-id}]}  Example:	Specifies the SPAN session, the destination port, the packet encapsulation, and the ingress VLAN and encapsulation.   Forsession_number, specify the session number entered in Step 4.   For interface-id, specify the destination port. The destination interface must be a physical port; it cannot be an EtherChannel, and it cannot be a VLAN.   (Optional) [, | -]—Specifies a series or range of interfaces. Enter a space before and after the comma or hyphen.   (Optional)encapsulation replicatespecifies that the destination interface replicates the source interface encapsulation method. If not selected, the default is to send packets in native form (untagged).   ingress enables forwarding of incoming traffic on the destination port and to specify the encapsulation type:   dot1q vlanvlan-id—Accepts incoming packets with IEEE 802.1Q encapsulation with the specified VLAN as the default VLAN.   untagged vlan vlan-idor vlan vlan-id—Accepts incoming packets with untagged encapsulation type with the specified VLAN as the default VLAN.
Step 6	end  Example:	Returns to privileged EXEC mode.
Step 7	show running-config  Example:	Verifies your entries.
Step 8	copy running-config startup-config  Example:
